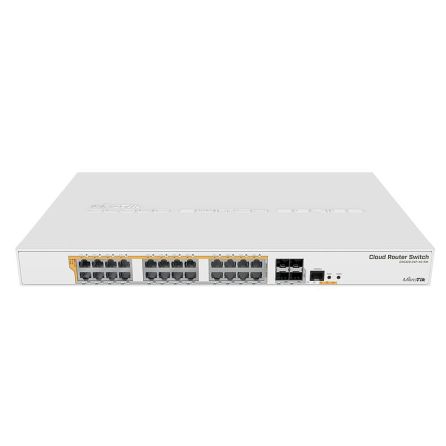

MikroTik CRS328-24P-4S+RM Switch (24) 10Gbps RJ45 PoE (4) SFP+ Ports 500W

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Specifications

• Architecture    ARM 32bit

• CPU    98DX3236

• CPU core count    1

• CPU nominal frequency    800 MHz

• Switch chip model    98DX3236

• Dimensions    443 x 300 x 44 mm

• RouterOS license    5

• Operating System    RouterOS / SwitchOS

• Size of RAM    512 MB

• Storage size    16 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -20°C to 60°C

Powering

• Number of AC inputs    1

• AC input range    100-240

• Number of PSU slots    2

• Max power consumption    494 W

• Max power consumption without attachments    44 W

• Cooling type    2 fans

PoE-out

• PoE-out ports    Ether1-Ether24

• PoE out    802.3af/at

• Max out per port output (input 18-30 V)    1000 mA

• Max out per port output (input 30-57 V)    450 mA

• Max total out (A)    20 A

Ethernet

• 10/100/1000 Ethernet ports    24

Fiber

• SFP+ ports    4

Peripherals

• Serial console port    RJ45

Other

• CPU temperature monitor    Yes

• Current Monitor    Yes

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

• Mode button    Yes

Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    IP00
