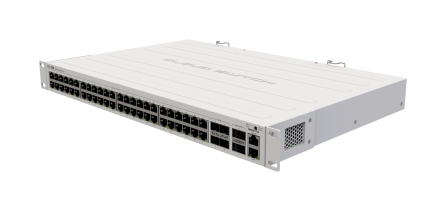

MikroTik CRS354-48G-4S+2Q+RM Switch (1) 100 Mb (48) GbE RJ45 (4) SFP+ (2) QSFP+

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! <

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specifications:

• Architecture    MIPSBE

• CPU    QCA9531

• CPU core count    1

• CPU nominal frequency    650 MHz

• Switch chip model    98DX3257

• Dimensions    297 x 443 x 44 mm

• RouterOS license    5

• Operating System    RouterOS v7 / SwitchOS

• Size of RAM    128 MB

• Storage size    32 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -20°C to 60°C

Powering

• Number of AC inputs    2

• AC input range    100-240

• Number of PSU slots    2

• Frequency (Hz)    50-60

• Max power consumption    60 W

• Max power consumption without attachments    50 W

• Cooling type    3 fans

Ethernet

• 10/100 Ethernet ports    1

• 10/100/1000 Ethernet ports    48

Fiber

• SFP+ ports    4

• Number of 40G QSFP+ ports    2

Peripherals

• Serial console port    RJ45

Other

• CPU temperature monitor    Yes

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    IP20
