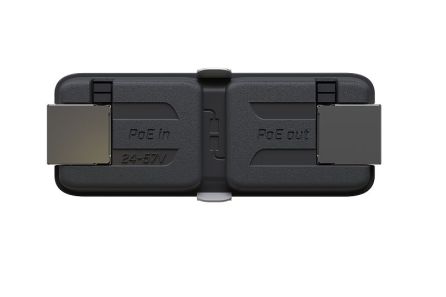

MikroTik GPeR Gigabit Passive Ethernet Repeater

The GPeR unit allows to extend Ethernet cable by additional hop (< 100 - 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m.

Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.

Maximum allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality - up to 150 m).

Maximum allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality).

In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers.

Specifications

• 10/100/1000 Ethernet ports: 2

• Max out per port output (input 18-30 V): 2 A

• Max out per port output (input 30-57 V): 0.7 A

• PoE in: 802.3af/at

• PoE in input Voltage: 24-57 V

• PoE out: 802.3af/at

• Tested ambient temperature: -40°C to 70°C
