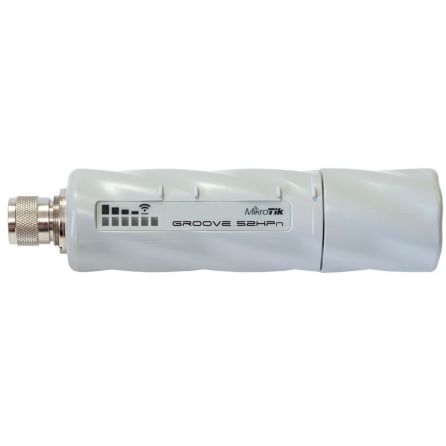

MikroTik RBGroove52HPn-US Groove 52 2.4GHz/5GHz Backbone/CPE N-male connector

OOur smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power!

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

Box contains: Groove unit, mounting loops, PoE injector and power adapter

We have two versions available.

-Groove 52-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- Groove 52 (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

Specifications

• Architecture MIPSBE

• CPU AR9342

• CPU core count 1

• CPU nominal frequency 600 MHz

• Dimensions 180x49x44mm, 193g

• RouterOS license 3

• Operating System RouterOS

• Size of RAM 64 MB

• Storage size 16 MB

• Storage type FLASH

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (PoE-IN)

• Max power consumption 6 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 9-30 V

Wireless specifications

• Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s

• Wireless 2.4 GHz/5 GHz number of chains 1

• Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n

• Wireless 2.4 GHz/5 GHz chip model AR9342

• Wireless 2.4 GHz/5 GHz generation Wi-Fi 4

Ethernet

• 10/100 Ethernet ports 1

Other

• PCB temperature monitor Yes

• Voltage Monitor Yes

• Beeper Yes

Certification & Approvals

• Certification CE, FCC, IC, EAC, ROHS
