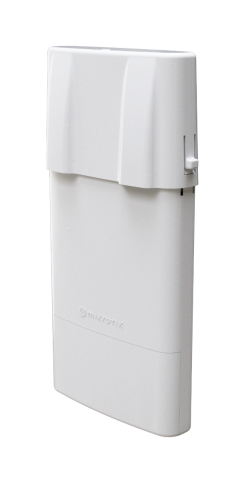

MikroTik L11UG-5HaxD-NB-US NetBox 5 ax AP/CPE/Point-to-point 5GHz. WiFi6

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*

This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Specifications:

• Architecture: ARM

• CPU: IPQ-5010

• CPU core count: 2

• CPU nominal frequency: 800 MHz

• RouterOS license: 4

• Operating System: RouterOS v7

• Size of RAM: 256 MB

• Storage size: 128 MB

• Storage type: NAND

• MTBF: Approximately 200'000 hours at 25C

• Tested ambient temperature: -40°C to 70°C

Powering

• Number of DC inputs 1 (PoE-IN)

• Max power consumption 15 W

• Max power consumption without attachments 6 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 18-28 V

Wireless specifications

• Wireless 5 GHz Max data rate: 2400 Mbit/s

• Wireless 5 GHz number of chains: 2

• Wireless 5 GHz standards: 802.11a/n/ac/ax

• Wireless 5 GHz chip model: QCN-6102

• Wireless 5 GHz generation: Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports: 1

Peripherals

• Number of USB ports: 1

• USB Power Reset: Yes

• USB slot type: USB type A

• Max USB current (A): 1.5

Other

• PCB temperature monitor: Yes

• Voltage Monitor: Yes

• Beeper: Yes

Certification & Approvals

• Certification: CE, FCC, IC, EAC, ROHS

• IP: 54
