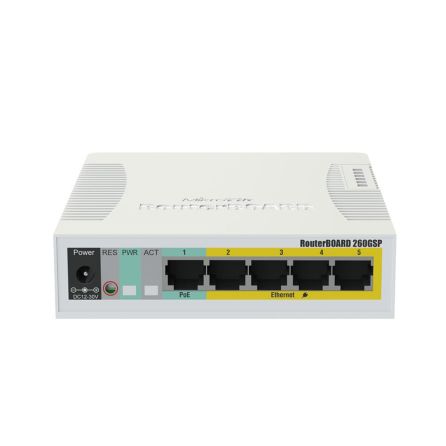

MikroTik RB260GSP CSS106-1G-4P-1S Switch (5) GbE RJ45 (1) SFP Ports

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

Specifications

• Switch chip model    QCA8337

• Dimensions    113x139x28mm

• Operating System    MikroTik SwOS

• Storage size    128 KB

• Storage type    FLASH

• MTBF    Approximately 100'000 hours at 25C

• Tested ambient temperature    -20°C to 70°C

Powering

• Number of DC inputs    2 (PoE-IN, DC jack)

• DC jack input Voltage    11-30 V

• Max power consumption    53 W

• Max power consumption without attachments    5 W

• Cooling type    Passive

• PoE in    Passive PoE

• PoE in input Voltage    11-30 V

PoE-out

• PoE-out ports    Ether2-Ether5

• PoE out    Passive PoE

• Max out per port output (input 18-30 V)    1 A

• Max total out (A)    2 A

Ethernet

• 10/100/1000 Ethernet ports    5

• Fiber

• SFP DDMI    Yes

• SFP ports    1

Other

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

• Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    IP20
