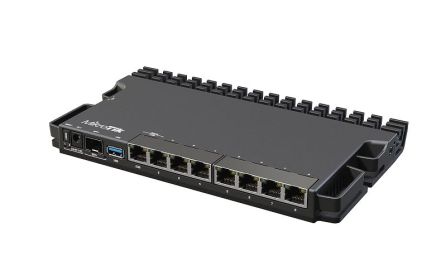

MikroTik RB5009UG+S+IN Router (7) GbE (1) 2.5G RJ45 USB 3.0

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Specifications:

• Architecture: ARM 64bit

• CPU: 88F7040

• CPU core count: 4

• CPU nominal frequency: 350-1400 (auto) MHz

• RouterOS license: 5

• Operating System: RouterOS (v7 only)

• Size of RAM: 1 GB

• Storage size: 1 GB

• Storage type: NAND

• MTBF: Approximately 200'000 hours at 25C

• Tested ambient temperature:-40°C to 60°C
