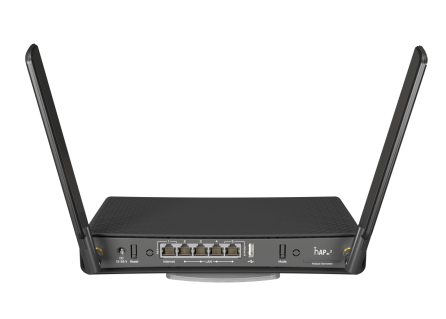

MikroTik RBD53iG-5HacD2HnD-US hAP ac³ Router 2.4 / 5 GHz. 802.11ac 5 Giga Ports

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Specifications:

• Architecture ARM 32bit

• CPU IPQ-4019

• CPU core count 4

• CPU nominal frequency 716 MHz

• Dimensions 251 x 129 x 39 mm

• RouterOS license 4

• Operating System RouterOS

• Size of RAM 256 MB

• Storage size 128 MB

• Storage type NAND

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

• IPsec hardware acceleration Yes

Wireless capabilities

• Wireless 2.4 GHz Max data rate 300 Mbit/s

• Wireless 2.4 GHz number of chains 2

• Wireless 2.4 GHz standards 802.11b/g/n

• Antenna gain dBi for 2.4 GHz 3

• Wireless 2.4 GHz chip model IPQ-4019

• Wireless 2.4 GHz generation Wi-Fi 4

• Wireless 5 GHz Max data rate 867 Mbit/s

• Wireless 5 GHz number of chains 2

• Wireless 5 GHz standards 802.11a/n/ac

• Antenna gain dBi for 5 GHz 5.5

• Wireless 5 GHz chip model IPQ-4019

• Wireless 5 GHz generation Wi-Fi 5

• WiFi speed AC1200

Ethernet

• 10/100/1000 Ethernet ports 5

• Number of 1G Ethernet ports with PoE-out 1

Peripherals

• Number of USB ports 1

• USB Power Reset Yes

• USB slot type USB type A

• Max USB current (A) 1

Powering

• Number of DC inputs 2 (PoE-IN, DC jack)

• DC jack input Voltage 12-28 V

• Max power consumption 30 W

• Max power consumption without attachments 12 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 18-28 V

PoE-out

• PoE-out ports Ether5

• PoE out Passive PoE

• Max out per port output (input 18-30 V) 0.5 A

• Max total out (A) 0.5 A

Certification & Approvals

• Certification CE, FCC, IC, EAC, ROHS

• IP IP20

Other

• Mode button Yes
