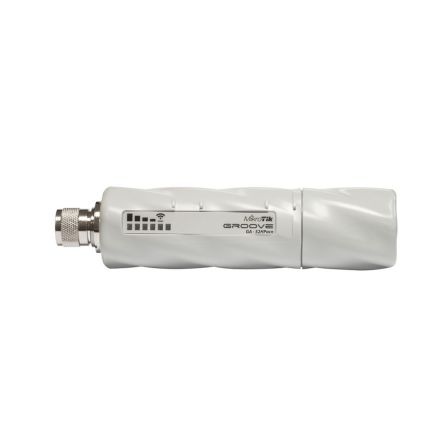

MikroTik RBGrooveGA-52HPacn GrooveGA 52 ac 2.4GHz/5GHz AP/Backbone/CPE

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

The Groove A (AP model) comes with Level 4 license and includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

- RBGrooveGA-52HPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBGrooveGA-52HPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications:

• Architecture MIPSBE

• CPU QCA9556

• CPU core count 1

• CPU nominal frequency 720 MHz

• Dimensions 177 x 44 x 44 mm

• RouterOS license 4

• Operating System RouterOS

• Size of RAM 64 MB

• Storage size 16 MB

• Storage type FLASH

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

Powering:

• Number of DC inputs 1 (PoE-IN)

• Max power consumption 5 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 10-30 V

Wireless Specifications:

• Wireless 5 GHz/2.4 GHz Max data rate 433 Mbit/s

• Wireless 5 GHz/2.4 GHz number of chains 1

• Wireless 5 GHz/2.4 GHz standards 802.11b/g/n, 802.11a/n/ac

• Antenna gain dBi for 5 GHz/2.4 GHz 6

• Wireless 5 GHz/2.4 GHz chip model QCA9889

• Wireless 5 GHz/2.4 GHz generation Wi-Fi 4
