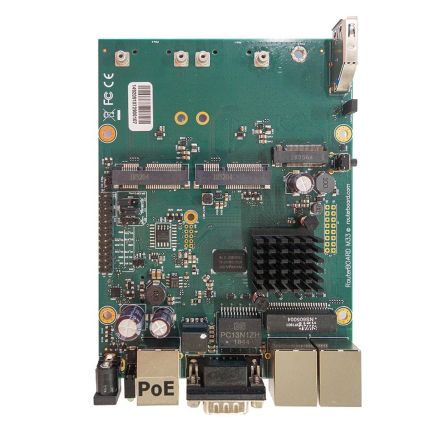

MikroTik RBM33G Powerful OEM board with three Gigabit LAN and two miniPCIe slots

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).

The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:

• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)

• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)

The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.

The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.

Specifications:

• Product code RBM33G

• Architecture MMIPS

• CPU MT7621A

• CPU core count 2

• CPU nominal frequency 880 MHz

• CPU Threads count 4

• License level 4

• Size of RAM 256 MB

• Storage size 16 MB

• Storage type FLASH

• Tested ambient temperature -40°C to 70°C
