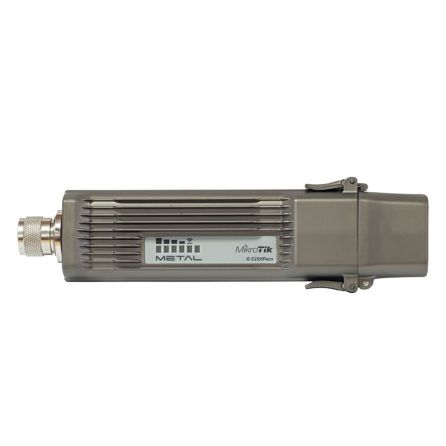

MikroTik RBMetalG-52SHPacn Metal 52 ac PtP / PtMP 2.4 / 5GHz. 802.11/ac

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).

We have two versions available.

- RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

• Architecture    MIPSBE

• CPU    QCA9556

• CPU core count    1

• CPU nominal frequency    720 MHz

• Dimensions    215x60x38mm

• RouterOS license    4

• Operating System    RouterOS

• Size of RAM    64 MB

• Storage size    16 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -40°C to 70°C

Powering

• Number of DC inputs    1 (PoE-IN)

• Max power consumption    11 W

• Cooling type    Passive

• PoE in    Passive PoE

• PoE in input Voltage    10-30 V

Wireless specifications

• Wireless 2.4 GHz/5 GHz Max data rate    433 Mbit/s

• Wireless 2.4 GHz/5 GHz number of chains    1

• Wireless 2.4 GHz/5 GHz standards    802.11a/n/ac, 802.11b/g/n

• Antenna gain dBi for 2.4 GHz/5 GHz    6

• Wireless 2.4 GHz/5 GHz chip model    QCA9889

• Wireless 2.4 GHz/5 GHz generation    Wi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports    1

Other

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

• Beeper    Yes

Certification & Approvals

• Certification    CE, FCC, IC, EAC, ROHS

• IP    IP55
