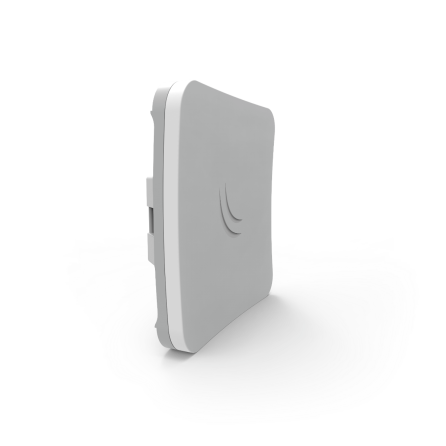

Mikrotik RBSXTsqG-5acD SXTsq 5 ac 5GHz. 16dBi 802.11ac CPE

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

- SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications:

• Architecture ARM 32bit

• CPU: IPQ-4018

• CPU core count: 4

• CPU nominal frequency: 716 MHz

• Dimensions: 129 x 129 x 34 mm

• RouterOS license: 3

• Operating System: RouterOS

• Size of RAM: 256 MB

• Storage size: 16 MB

• Storage type: FLASH

• MTBF: Approximately 100'000 hours at 25C

• Tested ambient temperature: -40°C to 70°C

• IPsec hardware acceleration: Yes

Powering

• Number of DC inputs: 1 (PoE-IN)

• Max power consumption: 7 W

• Cooling type: Passive

• PoE in: Passive PoE

• PoE in input Voltage: 10-28 V

Wireless specifications

• Wireless 5 GHz Max data rate: 867 Mbit/s

• Wireless 5 GHz number of chains: 2

• Wireless 5 GHz standards: 802.11a/n/ac

• Antenna gain dBi for 5 GHz: 16

• Wireless 5 GHz chip model: IPQ-4018

• Wireless 5 GHz generation Wi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports: 1

Certification & Approvals

• Certification: CE, FCC, IC, EAC, ROHS

• IP: IP54

Wireless specifications

• 5 GHz Transmit (dBm) Receive Sensitivity

• 6MBit/s 25 -96

• 54MBit/s 21 -80

• MCS0 25 -96
