MikroTik RBwAPR-2nD&R11e-LR8 wAP LR8 kit gateway solution for LoRa 2.4GHz wAP w/ 863-870MHz

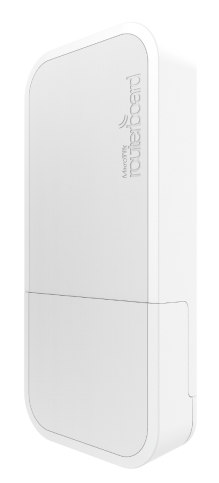

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.

wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

Specifications:

• Architecture MIPSBE

• CPU QCA9531

• CPU core count 1

• CPU nominal frequency 650 MHz

• RouterOS license 4

• Operating System RouterOS

• Size of RAM 64 MB

• Storage size 16 MB

• Storage type FLASH

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 60°C

Powering

• Number of DC inputs 3 (DC jack, PoE-IN, Automotive)

• DC jack input Voltage 9-30 V

• Automotive input Voltage 9-30 V

• Max power consumption 7 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 9-30 V

Wireless specifications

• Wireless 2.4 GHz Max data rate 300 Mbit/s

• Wireless 2.4 GHz number of chains 2

• Wireless 2.4 GHz standards 802.11b/g/n

• Antenna gain dBi for 2.4 GHz 2

• Wireless 2.4 GHz chip model QCA9531

• Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

• 10/100 Ethernet ports 1

Peripherals

• Number of SIM slots 1 Modem (Mini SIM)

• MiniPCI-e slots 1
