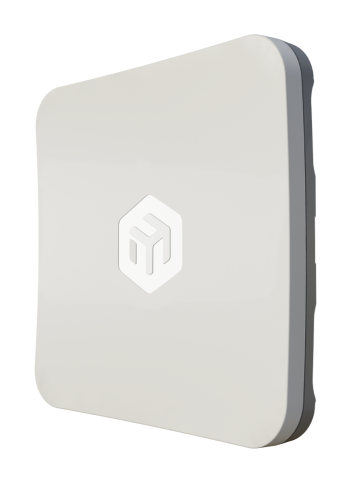

MikroTik SXTsq-5axD-US SXTsq 5 ax CPE / AP Wi-Fi 6 16 dBi

Meet the SXTsq 5 ax — our first Wi-Fi 6 outdoor CPE, combining the best wireless technology with our trusted, compact SXTsq form factor.

Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual- core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space- sensitive deployments.

Specifications

• Architecture: ARM 64bit

• CPU: IPQ-5010

• CPU core count: 2

• CPU nominal frequency: 800 MHz

• RouterOS license: 4

• Operating System: RouterOS v7

• Size of RAM: 256 MB

• Storage size: 128 MB

• Storage type: NAND

• MTBF: Approximately 100'000 hours at 25C

• Tested ambient temperature: -40°C to 70°C

Powering

• Number of DC inputs: 1 (PoE-IN)

• Max power consumption: 6 W

• Cooling type: Passive

• PoE in: Passive PoE

• PoE in input Voltage: 12-28 V

Wireless specifications

• Wireless 5 GHz Max data rate: 1200 Mbit/s

• Wireless 5 GHz number of chains: 2

• Wireless 5 GHz standards: 802.11a/n/ac/ax

• Antenna gain dBi for 5 GHz: 16

• Wireless 5 GHz chip model: QCN-6102

• Wireless 5 GHz generation: Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports: 1

Other

• CPU temperature monitor: Yes

Certification & Approvals

• Certification    CE, FCC, IC, EAC, ROHS

• IP    55
