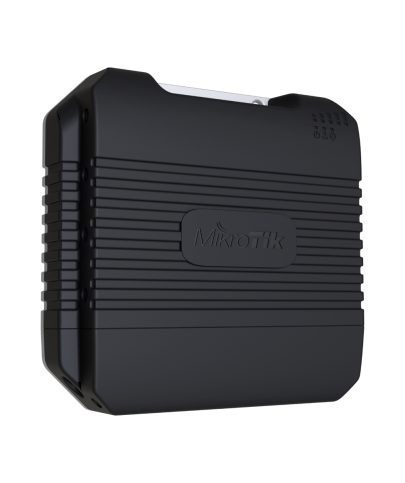

MikroTk LtAP-2HnD&FG621-EA LtAP LTE6 kit built-in GPS 3 MiniSIM

In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.

Perfect for logistics and tracking
There are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.

The power options are as flexible as it gets. You have the classic DC jack, passive PoE-in, and an automotive connector. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!

Customize – and achieve even more!
LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!

Our latest Cat6 LTE modem – cut costs, not speed
This LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after

Specifications
Architecture    MMIPS
CPU    MT7621AT
CPU core count    2
CPU nominal frequency    880 MHz
CPU Threads count    4
RouterOS license    4
Operating System    RouterOS v7
Size of RAM    128 MB
Storage size    16 MB
Storage type    FLASH
MTBF    Approximately 200'000 hours at 25C
Tested ambient temperature    -40°C to 70°C
IPsec hardware acceleration    Yes

Powering
Details
Number of DC inputs    3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage    12-30 V
Automotive input Voltage    12-27 V
Max power consumption    24 W
Max power consumption without attachments    12 W
Cooling type    Passive
PoE in    Passive PoE
PoE in input Voltage    12-30 V
Mobile
Details
3G Category    R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands    1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category    6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL    2x2
MIMO UL    1x1
LTE FDD bands    8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
LTE TDD bands    38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC    86335904
Wireless specifications
Details
Wireless 2.4 GHz Max data rate    300 Mbit/s
Wireless 2.4 GHz number of chains    2
Wireless 2.4 GHz standards    802.11b/g/n
Antenna gain dBi for 2.4 GHz    2.5
Wireless 2.4 GHz chip model    AR9342
Wireless 2.4 GHz generation    Wi-Fi 4
Ethernet
Details
10/100/1000 Ethernet ports    1
Peripherals
Details
Number of SIM slots    3 Modem (Mini SIM)
MiniPCI-e slots    2
Serial console port    RS232
Number of USB ports    1
USB Power Reset    Yes
USB slot type    USB type A
Max USB current (A)    1
Other
Details
PCB temperature monitor    Yes
Voltage Monitor    Yes
GNSS standards    GPS
Certification & Approvals
Details
Certification    CE, E-MARK, EAC, ROHS
IP    54
