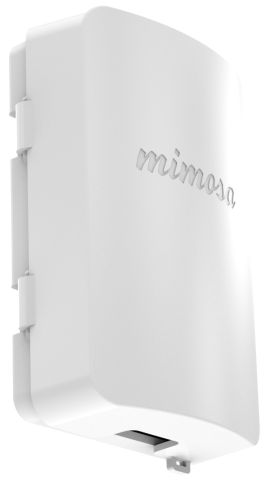

Mimosa 100-00039 NID Gigabit Network Interface

The Mimosa Gigabit Network Interface Device (NID) is a sleek and cost-effective surge protector or arrestor. It's designed for exterior wall mounting, providing outdoor technician access, ESD (electrostatic discharge) protection and grounding point for any installation that requires Ethernet cabling. The dust and water resistant design has a foam cable entry seal and a security fastener tie point

Specifications:

• Data Transfer Rate: Gigabit rated

• Connectors: Two (2) RJ-45

• Protection Mode: Line-to-line and line-to-ground

• Surge Arrestor: GTD (Gas Discharge Tube)

• Nominal Voltage: 20V @ 1A

• DC Sparkover: 90V @ 100V/s

• Impulse Sparkover: 550V @ 1000V/µs

• Impulse Discharge Current: 10kA

• Capacitance: < 1.0pF @ 1 MHz

• Mounting: Wall mount. Two screw mounting points for secure access to flat surface with optional rear feed point for clean installations.

• Dimensions: 42 mm (1.6”) x 131 mm (5.1”) x 84 mm (3.3”)

• Weight: 0.13 kg (4.8 oz)

• Operating Temperature: -40 to +55 C

• Humidity: 5 to 100% condensing

• Environmental Protection: IP54 (Dust and Water Intrusion Protection)
