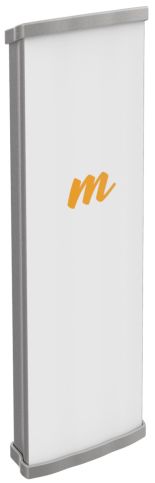

Mimosa 100-00083 N5-45x2 4.9-6.4GHz Antenna 45 Deg 19 dBi 2 Port - 2 Pack

Industry’s Highest Performing Sector Antennas

The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications.

Disruptive Sector Antenna

All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

No Sidelobes

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.

Industry’s Highest Front-to-Back Ratio

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

Beamformed High Gain

The N5-45x4, paired exclusively with Mimosa’s 4x4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.

Optimized Ground Coverage

Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of capacity.

Supplying focused coverage up to a 90º area, one A5c plus two N5-45x2 antennas fit into sector deployments, providing 500 Mbps of capacity and industry-leading sidelobe rejection.

Supports Third-Party Access Points

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.
