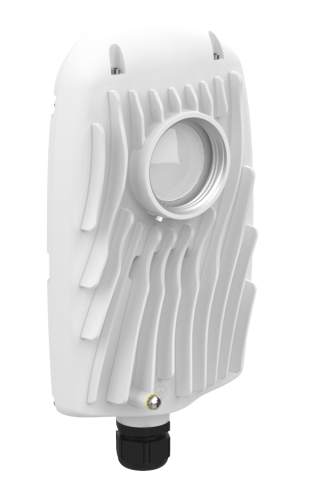

Mimosa 100-00109 B5x 4.9-6.4GHz 30dBm PTP Backhaul

Extreme Speed and Flexibility

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish).

Integrated Radio with Modular Antenna Options

The B5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

Suits the Needs for Many Deployments

As one of the highest capacity, unlicensed PTP solutions in the industry, it delivers up to 1.5 Gbps (IP). 160 MHz of aggregate channel capacity and GPS Sync mode provide added performance. Coupled with a rugged IP67 rating and modular twist-on antennas, it's extremely flexible.

Specifications:

• Max Throughput: 1.5 Gbps (IP)

• Frequency: 4900–6400 MHz

• Weight: 1.4 kg (3.1 lbs)

• Power Consumption: 20 W max

• Gain: 8 dBi (native) / 12–25 dBi (with antennas)

• IP Rating: IP67

• Build Material: Die-cast aluminum

• Max Out Power: 30 dBm (single frequency) / 27 dBm (dual frequency)
