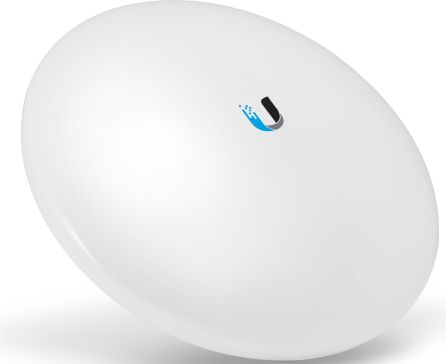

Ubiquiti NBE-5AC-Gen2 High-Performance airMAX® Bridge Worldwide

WARNING: WORLWIDE VERSIONS ARE NOT INTENDED FOR USE WITHIN THE UNITED STATE OR CANADA. THEY ARE FOR EXPORT ONLY. THEY ARE NOT ALLOWED TO BE USED OR INSTALLED IN THESE TERRITORIES, IT IS IMPERATIVE THAT ANY SHIPMENTS MADE WITHIN THE UNITED STATE OR CANADA BE THE US VERSION, IF YOU ARE BUYING THE WORLDWIDE VERSION YOU MUST COMPLETE THE FCC FORM. THERE WILL NOT EXCEPTIONS!

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the NanoBeam® 5AC Gen 2.

Improved Noise Immunity

The NanoBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially lters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

The radio and antenna are combined to create a more ef cient and compact CPE. The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint.

Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost‐effective to deploy.

Advanced RF Analytics

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes
the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Real-Time Reporting

airOS 8 displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise, and Interference (SNI) diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network.
In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level.
airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UMobile App
The NanoBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi
The U®Mobile App provides instant accessibility to the airOS con guration interface and can be downloaded from the App Store (iOS) or Google PlayTM (Android). UMobile allows you to set up, con gure, and manage
the NanoBeam 5AC Gen 2 and offers various con guration options once you're connected or logged in.
Multi-Radio Architecture.

Technology airMAX ac TDMA Technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time
slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime ef ciency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Intelligent QoS Priority assigned to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high‐speed, carrier‐class links.

Superior Performance
The next‐generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM – a signi cant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

Hardware Overview

The NanoBeam 5AC Gen 2 features airMAX ac technology and enhanced protection against ESD events.

Ease of Installation
• Quick Installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall‐mounting.
• Convenient Alignment The NanoBeam 5AC Gen 2 pivots on its ball joint 3‐axis mount for easy aiming.

Innovative Mechanical Design
• Effcient Footprint Theradioandantennaarecombined into a single body that takes up minimal space. The form factor features the highest gain for its size.
• Aesthetics The NanoBeam 5AC Gen 2 is small enough to blend discreetly into the background at a customer's location.
• Versatile Mounting The NanoBeam 5AC Gen 2 can be mounted in almost any position needed for line of sight.

Specifications

• Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
• Weight (Mount Included) 0.530 kg (1.17 lb)
• Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
• Max. Power Consumption 8.5W
• Gain 19 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port Wi-Fi for Management
• Processor Specs Atheros MIPS 74Kc, 720 MHz
• Memory 128 MB DDR2, 8 MB Flash
• LEDs Power, Ethernet, (4) Signal Strength
• Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR 1.5:1
• Channel Sizes
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
• Polarization Dual Linear
• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount (Kit Included), Wall-Mount
• Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 80° C (-40 to 176° F)
• Operating Humidity 5 to 95% Noncondensing
• Certi cations CE, FCC, IC
• RoHS Compliance Yes
• Salt Fog Test IEC 68‐2‐11 (ASTM B117), Equivalent: MIL‐STD‐810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019‐1‐4, Equivalent: MIL‐STD‐810 G Method 506.5
