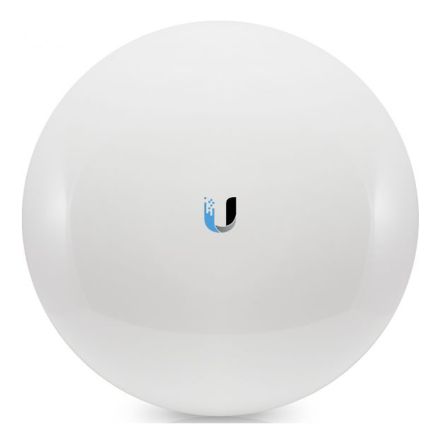

Ubiquiti NBE-M5-16 5GHz High-Performance airMAX® Bridge Worldwide

Overview

Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam®.

Improved Noise Immunity

Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

The Ubiquiti® Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.

Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.

Innovative Mechanical Design

All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint.
• Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
• Convenient alignment The NanoBeam pivots on its ball joint for easy aiming.

Compact Form Factor

• Ef cient footprint The radio and antenna are combined into a single body that takes up minimal space.
• Versatile mounting The NanoBeam can be mounted in almost any position needed for line of sight.
• Aesthetics The NanoBeam is small enough to blend discreetly into the background at a customer's location.

Specifications

• Dimensions 140 x 140 x 54 mm (5.51 x 5.51 x 2.13")
• Weight 0.320 kg (0.71 lb)
• Power Supply 24V, 0.5A PoE
• Max. Power Consumption 6W
• Operating Frequency

Worldwide 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz*
USA: U-NII-2A 5250 - 5350 MHz*
USA: U-NII-2C 5470 - 5725 MHz*
USA: U-NII-3 5725 - 5850 MHz*

• Gain 16 dBi
• Networking Interface (1) 10/100 Ethernet Port
• Processor Specs Atheros MIPS 74Kc, 560 MHz
• Memory 64 MB DDR2, 8 MB Flash
• LEDs (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR 1.5:1
• Channel Sizes 5/8/10/20/30/40 MHz
• Polarization Dual Linear
• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount (Kit Included), Wall-Mount
• Wind Loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Wireless Approvals FCC, IC, CE
• RoHS Compliance Yes
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
