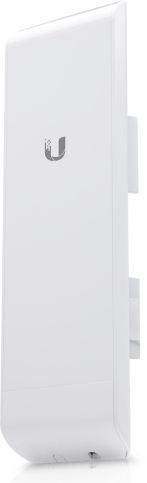

Ubiquiti NSM2 US 2.4GHz. Indoor/Outdoor airMAX® CPE

Ubiquiti Networks™ set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation™. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX™ (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.

Specifications

• Processor Specs Atheros MIPS 24KC, 400 MHz

• Memory 32 MB SDRAM, 8 MB Flash

• Networking Interface (1) 10/100 Ethernet Port

• Wireless Approvals FCC Part 15.247, IC RS210, CE

• RoHS Compliance Yes

• Dimensions (mm) 294 x 31 x 80

• Weight 0.4 kg

• Power Supply (PoE) 24V, 0.5A

• Max. Power Consumption 8 W

• Gain 11 dBi

• Polarization Dual Linear

• Enclosure Characteristics Outdoor UV Stabilized Plastic

• Mounting Pole Mounting Kit Included

• Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

• Operating Temperature -30 to 75° C

• Operating Humidity 5 to 95% Condensing

• Shock & Vibration ETSI300-019-1.4

• Operating Frequency Summary (MHz) 2412-2462

• Gain 10.4-11.2 dBi

• Cross-pol Isolation 23 dB Minimum

• Max. VSWR 1.6:1

• Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
