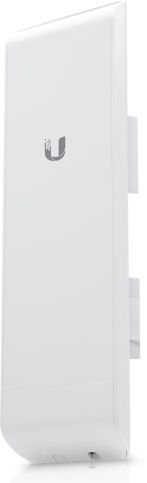

Ubiquiti NSM5 US 5GHz. Indoor/Outdoor airMAX® CPE

Leading-Edge Industrial Design

Ubiquiti Networks™ set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation™. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX™ (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.

Specifications:

* Processor Specs Atheros MIPS 24KC, 400 MHz
* Memory 32 MB SDRAM, 8 MB Flash
* Networking Interface (1) 10/100 Ethernet Port
* Wireless Approvals FCC Part 15.247, IC RS210, CE
* RoHS Compliance Yes
* Dimensions (mm) 294 x 31 x 80
* Weight 0.4 kg
* Power Supply (PoE) 24V, 0.5A
* Max. Power Consumption 8 W
* Gain 16 dBi
* Polarization Dual Linear
* Enclosure Characteristics Outdoor UV Stabilized Plastic
* Mounting Pole Mounting Kit Included
* Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
* Operating Temperature -30 to 75° C
* Operating Humidity 5 to 95% Condensing
* Shock & Vibration ETSI300-019-1.4
* Operating Frequency Summary (MHz) 5725-5850
* Gain 14.6-16.1 dBi
* Cross-pol Isolation 22 dB Minimum
* Max. VSWR 1.6:1
* Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
