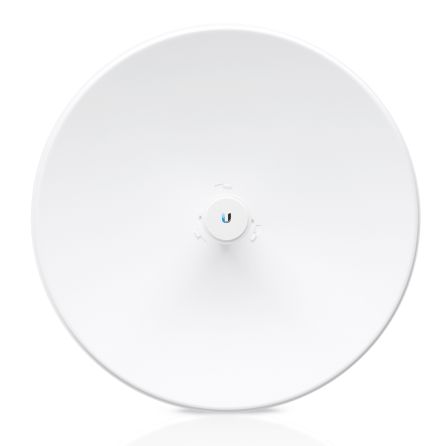

Ubiquiti PBE-5AC-500-ISO 5GHz. airMAX® ac Bridge with RF Isolated Reflector

Overview

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® ac.

Improved Noise Immunity
The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.

Hardware Overview

Innovative Mechanical Design

Innovative Mechanical Design
• Built-in mechanical tilt All mounting brackets conveniently offer elevation adjustments:
• PBE-5AC-300: ± 20° tilt
• PBE-5AC-400/PBE-5AC-500: 20° uptilt and 10° downtilt
• PBE-5AC-620: ± 15° tilt

Quick assembly Minimal fasteners simplify installation.
•Easy removal The antenna feed can be detached with the push of a button.

Industrial-Strength Construction

• Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
• Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. The hardware also prevents paint from being removed from the metal brackets for improved corrosion resistance.
• Protective radome Shields the radio from the elements. It is included with the PBE-5AC-500 and available as an optional accessory for the PBE-5AC-400.

Models

Using airMAX ac technology, the PowerBeam ac supports up to 450+ Mbps real TCP/IP throughput. The PowerBeam ac launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade.

Specifications

• Dimensions

Radome Excluded 520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
Radome Included 525 x 525 x 315 mm (20.67 x 20.67 x 12.40")

• Weight

Radome Excluded 2.35 kg (5.18 lb)
Radome Included 3.15 kg (6.95 lb)

• Power Supply 24V, 0.5A Gigabit PoE
• Max. Power Consumption 8.5W
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range 20-26VDC
• Operating Frequency

Worldwide 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz*
USA: U-NII-2A 5250 - 5350 MHz*
USA: U-NII-2C 5470 - 5725 MHz*
USA: U-NII-3 5725 - 5850 MHz*

• Gain 27 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs Atheros MIPS 74Kc, 720 MHz
• Memory 128 MB DDR2, 16 MB Flash
• LEDs (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR 1.5:1
• Channel Sizes

PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz

• Polarization Dual Linear
• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount (Kit Included)
• Wind Loading 264.6 N @ 96 km/h (60 lbf @ 60 mph)
• Wind Survivability 96 km/h (60 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Wireless Approvals FCC, IC, CE
• RoHS Compliance Yes
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5•
