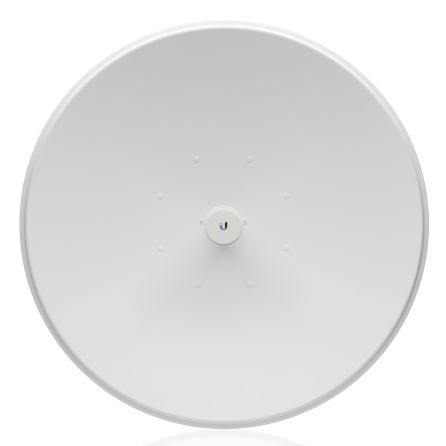

Ubiquiti PBE-5AC-620 US 5GHz High-Performance airMAX® ac Bridge

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® ac.

Improved Noise Immunity

The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially  lters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.

Hardware Overview

Innovative Mechanical Design

• Built-in mechanical tilt All mounting brackets conveniently offer elevation adjustments:
• PBE-5AC-300: ± 20° tilt
• PBE-5AC-400/PBE-5AC-500: 20° uptilt and 10° downtilt
• PBE-5AC-620: ± 15° tilt
• Quick assembly Minimal fasteners simplify installation.
• Easy removal The antenna feed can be detached with the push of a button.

Models

Using airMAX ac technology, the PowerBeam ac supports up to 450+ Mbps real TCP/IP throughput. The PowerBeam ac launches with PtP functionality, and a client mode feature will be added with a future  rmware upgrade.

Specifications

• Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")
• Weight 6.4 kg (14.11 lbs)
• Power Supply 24V, 0.5A Gigabit PoE
• Max. Power Consumption 8.5W
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range 20-26VDC
• Operating Frequency

Worldwide 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz*
USA: U-NII-2A 5250 - 5350 MHz*
USA: U-NII-2C 5470 - 5725 MHz*
USA: U-NII-3 5725 - 5850 MHz*

• Gain 29 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs Atheros MIPS 74Kc, 720 MHz
• Memory 128 MB DDR2, 16 MB Flash
• LEDs (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR 1.6:1
• Channel Sizes

PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz

• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount (Kit Included)
• Wind Loading

Radome Excluded 1510 N @ 200 km/h (340 lbf @ 125 mph)
Radome Included 1830 N @ 200 km/h (411 lbf @ 125 mph)

• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Wireless Approvals FCC, IC, CE
• RoHS Compliance Yes
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
