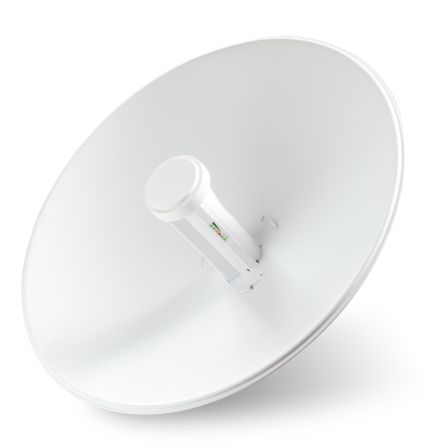

Ubiquiti PBE-M5-400-ISO 5GHz PowerBeam M5 ISO 25dBi 400mm

Overview

Ubiquiti Networks launches the PowerBeam™ ISO, an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation.

Improved Noise Immunity

The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ISO blocks noise to improve noise immunity. This is especially important in an area  crowded with other RF signals of the same or similar frequency.

Integrated Radio Design

Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Providing high performance and innovative mechanical design at a low cost, the PowerBeam ISO is extremely versatile and cost-effective to deploy.

Models

Using airMAX technology, the PowerBeam ISO supports up to 150+ Mbps real TCP/IP throughput.

Specifications

• Dimensions 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
• Weight 2.55 kg (5.62 lb)
• Power Supply 24V, 0.5A PoE
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range 20-26VDC
• Max. Power Consumption 6W
• Gain 22 dBi
• Operating Frequency

Worldwide 5170 - 5875 MHz
USA 5725 - 5850 MHz

• Wind Loading 210 N @ 200 km/h (47 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• LEDs (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs
• Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Sizes 5/8/10/20/30/40 MHz
• Polarization Dual Linear
• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount Kit Included
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Non-Condensing
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
