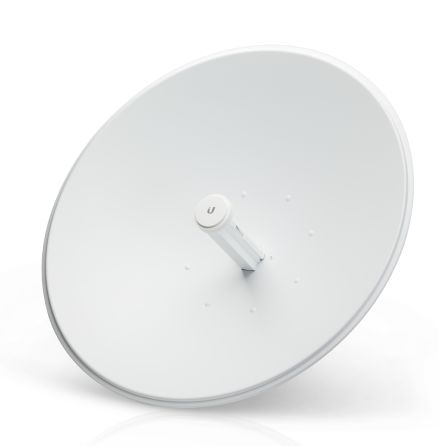

Ubiquiti PBE-M5-620 5GHz PowerBeam M5 29dBi 620mm

Overview

Starting with the first-generation  NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an  airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam®.

Improved Noise Immunity

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature  is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Providing high performance and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.

Hardware Overview

Innovative Mechanical Design

• Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
• Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole.
• Easy removal The antenna feed can be detached with the push of a button.

Corrosion Resistance

• Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
• Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.

The redesigned pole bracket for the 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.

Specifications

• Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")
• Weight 6.4 kg (14.11 lb)
• Power Supply 24V, 0.5A Gigabit PoE
• Max. Power Consumption 8.5W
• Operating Frequency

Worldwide 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz*
USA: U-NII-2A 5250 - 5350 MHz*
USA: U-NII-2C 5470 - 5725 MHz*
USA: U-NII-3 5725 - 5850 MHz*

• Gain 29 dBi
• Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs Atheros MIPS 74Kc, 560 MHz
• Memory 64 MB DDR2, 8 MB Flash
• LEDs (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR 1.6:1
• Channel Sizes 5/8/10/20/30/40 MHz
• Polarization Dual Linear
• Enclosure Outdoor UV Stabilized Plastic
• Mounting Pole-Mount (Kit Included)
• Wind Loading 1510 N @200 km/h (340 lbf @125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• Wireless Approvals FCC, IC, CE
• RoHS Compliance Yes
• Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test IEC 68-2-6
• Temperature Shock Test IEC 68-2-14
• UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
