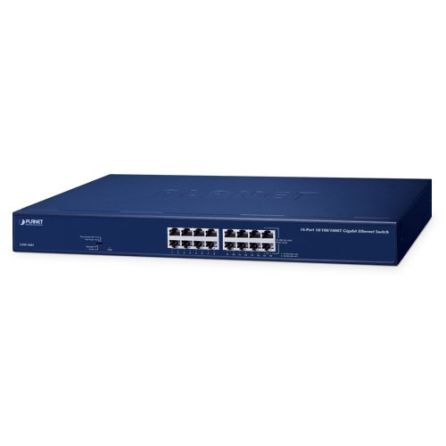

Planet GSW-1601 Switch (16) 10/100/1000 RJ45 Ports

Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking

PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Brand-new Hardware DIP Switch for Functional Operation Modes Selection

The new hardware version of the GSW-1601 offers “Standard”, “VLAN”, “Port Trunk” and “Flow Control Off” modes.

The GSW-1601 operates as a normal Gigabit Ethernet Switch in the "Standard" operation mode. The "VLAN" operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.

High Performance

The GSW-1601 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.  Besides, the Flow Control function of the GSW-1601 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.

All the RJ45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Excellent Traffic Transmission

The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 recognizes up to 8K different MAC addresses. The high data throughput and 32Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.

Fanless Design

With its good ventilation design, the GSW-1601 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-1601 is definitely the best choice for any working environment without affecting its performance.

Specifications:

• 10/100/1000BASE-T MDI/MDIX Ports 16

• Throughput (packet per second): 23.8Mpps

• Switch Fabric: 32Gbps

• Weight: 1.6kg

• Power Consumption/Dissipation: 7.6 watts/25 BTU

• Power Requirements: 100~240V AC, 0.15A, 50-60Hz

• Dimensions (W x D x H): 440 x 180 x 44mm, 1U height

• Switch Processing Scheme Store-and-Forward

• Address Table 8K entries

• Jumbo Packet Size 9K

• Flow Control Back pressure for half duplex / IEEE 802.3x Pause Frame for full duplex

• DIP Switch Operation mode selection

　Standard

　VLAN

　Port Trunk

　Flow control off

Standards Conformance

• Regulatory Compliance:  FCC Part 15 Class A, CE

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

Standards Compliance

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3x (Full-Duplex Flow Control)

IEEE 802.3az Energy Efficient Ethernet (EEE)

Environment

• Operating: Operating Temperature: 0~50 degrees C

• Relative Humidity: 5% to 95% (non-condensing)

• Storage: Temperature: -10~70 degrees C

• Relative Humidity: 5% to 95% (non-condensing)
