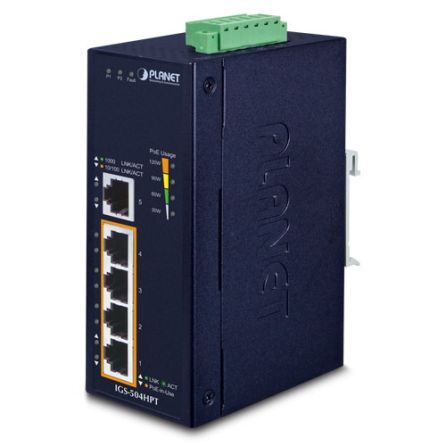

Planet IGS-504HPT Switch Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T

Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, the IGS-504HPT is a PLANET Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.

The special and convenient power system of the IGS-504HPT supports 12~56V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

Convenient and Reliable Power System

To facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the IGS-504HPT adopts power boost technology to solve power source issue but does not require special power supplies. The IGS-504HPT provides an integrated power solution with a wide range of voltages (12~56V DC) for worldwide operability. It also provides dual-redundant, reversible polarity power supply inputs for high availability applications.

Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the IGS-504HPT provides up to 36 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the IGS-504HPT can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

Intelligent LED Indicator for Real-time PoE Usage

The IGS-504HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.

Features:

Interface

• 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE

• Backward compatible with IEEE 802.3af Power over Ethernet

• Up to 4 ports of IEEE 802.3af/at devices powered

• Up to 120-watt PoE budget

• Supports PoE power up to 36 watts for each PoE port

• Each port supports 54V DC power to PoE powered device

• Auto detects powered device (PD)

• Circuit protection prevents power interference between ports

• Remote power feeding up to 100m

Layer 2 Switching

• Features Store-and-Forward mode with wire-speed filtering and forwarding rates

• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

• 4K MAC address table size

• 10K jumbo frame

• IEEE 802.1Q VLAN transparency

• Automatic address learning and address aging

• Supports CSMA/CD protocol

Industrial Case and Installation

• IP40 metal case

• DIN-rail, wall-mount or side wall-mount design

• 12~48V DC redundant power with reverse polarity protection

• Fault alarm for power input failed

• Supports 6KV DC Ethernet ESD protection

• -40 to 75 degrees C operating temperature

• 4 real-time PoE power usage indicators
