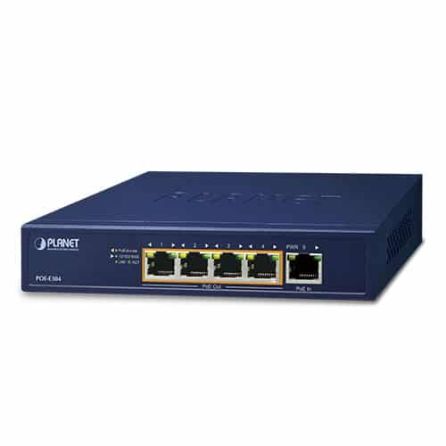

Planet POE-E304 PoE Extender 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit

The POE-E304 is a 1-port 95W 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications.

• Network Connector: 1 10/100/1000T 802.3bt PoE++ (In) to 4 10/100/1000T 802.3af/at PoE (Out)

• Type: End-span/Mid-span

• Standard: 802.3bt (Type 4)

• Max PoE Power:

• PoE-In: 50~56V DC, 95W

• PoE-Out: 50~55V DC, 32W

•  Operating Temperature: 0 to 50°C

• TAA Compliant

PoE Solution for Breaking RJ45 100m Limitation

PLANET POE-E304 is a 1-port 95W 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications. The POE-E304 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE input port and supplies a maximum of 65-watt PoE power budget to four PoE output ports, extending the simultaneous transmission distance of both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to 200 meters. Thus, the POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Plug and Play Installation

The POE-E304 is quite easy to be installed by simple Plug and Play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E304 injects power to the PD without affecting the data transmission performance. The POE-E304 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-304 is designed in a compact box containing five RJ45 ports, of which one “PoE IN” port functions as PoE (Data and Power) input and the other four “PoE OUT” ports function as PoE output. The “PoE OUT” port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.

Specifications:

• Network Connector: PoE In Port 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++ “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector

    PoE Out Port: 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/802.3at PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector

• Data Rate: 10/100/1000Mbps

• Switch Architecture: Store-and-Forward

• MAC Address Table: 2K

• Data Buffer: 1Mbits

• Switch Fabric: 10Gbps

• Switch Throughput: 7.44Mpps @ 64 bytes

• Jumbo Frame: 9K

• Flow Control: IEEE 802.3x pause frame for full duplex / Back pressure for half duplex

• LED Indicators: PoE In Port 10/100/1000 LNK/ACT (green)

      PoE Out Port 1 to Port 4: 10/100/1000 LNK/ACT (green)

      PoE-in-Use (orange)

      PWR (orange)

• Protection ESD: Contact 4KV, Air 6KV / Surge: 4KV

• Enclosure: Metal

• Installation: Desktop/Wall mountable

• Dimensions (W x D x H): 168 x 93 x 32 mm

• Weight: 403g

• Power Requirements: PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC

      External DC: 50~56V DC

• Power Consumption: 0.9 watts/3.1BTU (System on)

     74 watts/252.4BTU (Full loading with PoE function)

• Network Cable: 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)

      100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)

      1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft)

      EIA/TIA-568 100-ohm STP (100m, 328ft)

Power over Ethernet

• PoE Standard: PoE In Port

    IEEE 802.3bt Power over Ethernet Plus Plus end-span and mid-span PD class 4 PD

    Per PoE Out Port

    IEEE 802.3at Power over Ethernet Plus end-span PSE

    IEEE 802.3af Power over Ethernet end-span PSE

• PoE Power: PoE In Port

          50~56V DC, max. 95 watts input

          Per PoE Out Port

          50~55V DC, max. 32 watts output

• Power Pin Assignment: PoE In PoE: 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)

         Per PoE Out Port: 1/2 (-), 3/6 (+), end-span (Type A)

• PoE Power Budget: 65 watts (max.) @ IEEE 802.3bt PoE++ Type 4 PSE input / 32 watts (max.) @ IEEE 802.3at PoE+ input

Standard Conformance

• Regulatory Compliance: FCC Part 15 Class A, CE

• Standard Compliance: IEEE 802.3 10BASE-T Ethernet

        IEEE 802.3u 100BASE-TX Fast Ethernet

        IEEE 802.3ab 1000BASE-T Gigabit Ethernet

        IEEE 802.3af Power over Ethernet

        IEEE 802.3at Power over Ethernet Plus

        IEEE 802.3bt Power over Ethernet Plus Plus

        IEEE 802.3x Flow Control

Environment

• Operating Temperature: 0 ~ 50 degrees C / Relative Humidity: 5 ~ 95% (non-condensing)

• Storage Temperature: -10 ~ 70 degrees C

• Relative Humidity: 5 ~ 95% (non-condensing)
