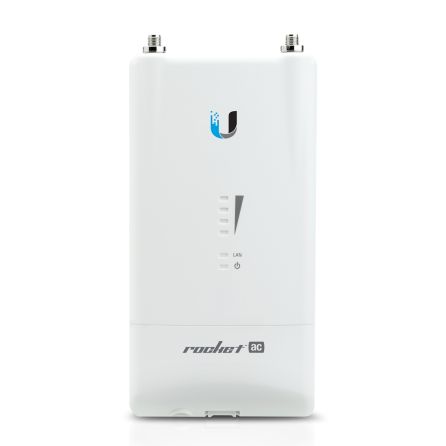

Ubiquiti R5AC-Lite-US 5GHz. airMAX®ac BaseStation

Overview

Ubiquiti Networks has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

The Rocket ac is available as three models: the Rocket5ac Lite, Rocket5ac PtP, and Rocket5ac PtMP. All three include airMAX ac technology. The Rocket5ac PtP and Rocket5ac PtMP also feature airPrism® technology to further enhance performance.

Pair the Rocket ac with airMAX ac antennas for optimal performance:

• PtP backhaul Rocket5ac Lite or Rocket5ac PtP with the RocketDish™ ac
• PtMP links Rocket5ac PtMP or Rocket5ac Lite 1 with the airMAX ac Sector

To enhance airMAX ac performance, Ubiquiti Networks introduces our patented airPrism technology, which is featured on the Rocket ac models, R5AC-PTP and R5AC-PTMP.

Improves SNR
High data rates require a high Signal-to-Noise Ratio (SNR), which is challenging to achieve, especially in noisy, high-density areas.

Integrated into Ubiquiti’s custom silicon, airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialized circuitry, the High-Selectivity Receiver (HSR).


Removes Interference
Depending on the product model and operating mode, available channel widths may include 10, 20, 30, 40, 50, 60, and/or 80 MHz.

Theoretically APs operate on different channels; however, because of the wider channel bandwidths, there can be overlap in spectrum usage.

airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design, so an airMAX ac AP with airPrism technology can provide significantly greater performance than a typical AP.

Facilitates AP Co-Location
Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co-locate all APs within that allotted footprint. Shielding and other means can lessen interference but may be impractical.

By deploying airMAX ac APs with airPrism technology, you can co-locate APs and enhance the overall performance of your wireless network.

Active Radio Frequency Filtering

Rocket5ac Lite
Launched with PtP functionality, the Rocket5ac Lite adds PtMP functionality with a firmware upgrade to airOS v7.1 or higher.The Rocket5ac Lite is a cost-effective basestation for links experiencing low or moderate levels of interference.

Specifications

• Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
• Weight 250 g (8.81 oz)
• Power Supply 24V, 0.5A Gigabit PoE Adapter
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption 8.5W
• Operating Frequency

Worldwide 5150 - 5875 MHz
USA: U-NII-1 5150 - 5250 MHz*
USA: U-NII-2A 5250 - 5350 MHz*
USA: U-NII-2C 5470 - 5725 MHz*
USA: U-NII-3 5725 - 5850 MHz*

• Processor Atheros MIPS 74Kc, 720 MHz
• Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
• Networking Interface (1) 10/100/1000 Mbps
• RF Concesiones (2) RP-SMA (Waterproof)
• LEDs Power, LAN, (4) Signal Strength
• Channel Sizes

PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz

• Enclosure Characteristics Outdoor UV Stabilized Plastic
• Supported Voltage Range 20-26VDC
• ESD/EMP Protection ± 24KV Air / Contact
• Operating Temperature -40 to 80° C (-40 to 176° F)
• Operating Humidity 5 to 95% Noncondensing
• Shock and Vibration ETSI300-019-1.4
• Wireless Approvals FCC, IC, CE
• RoHS Compliance Ye s
• Modes Access Point, Station
• Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
• Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
• Distance Adjustment Dynamic Ack and Ackless Mode
• Power Adjustment Software Adjustable UI or CL
• Security WPA2 AES Only
• QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
• Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
• Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
• Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
