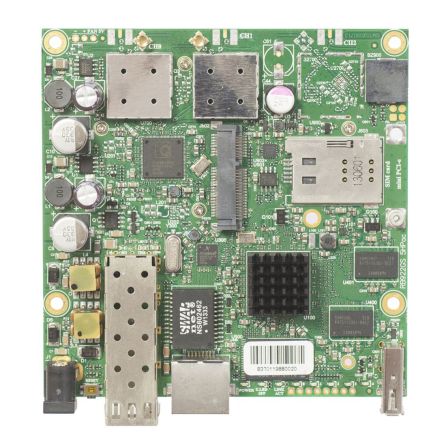

MikroTik RB922UAGS-5HPacD 5GHz. 802.11ac 720Mhz CPU, 128MB RAM, 1xGigabit Ethernet

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications:

•

• Architecture MIPSBE

• CPU QCA9557

• CPU core count 1

• CPU nominal frequency 720 MHz

• Dimensions 105x105mm

• RouterOS license 4

• Operating System RouterOS

• Size of RAM 128 MB

• Storage size 128 MB

• Storage type NAND

• MTBF Approximately 100'000 hours at 25C

• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 2 (DC jack, PoE-IN)

• DC jack input Voltage 8-30 V

• Max power consumption 17 W

• Cooling type Passive

• PoE in Passive PoE

• PoE in input Voltage 8-30 V

Wireless

• Wireless 5 GHz Max data rate 867 Mbit/s

• Wireless 5 GHz number of chains 2

• Wireless 5 GHz standards 802.11a/n/ac

• Wireless 5 GHz chip model QCA9882

• Wireless 5 GHz generation Wi-Fi 5

Ethernet

• SFP DDMI yes

• SFP ports 1
