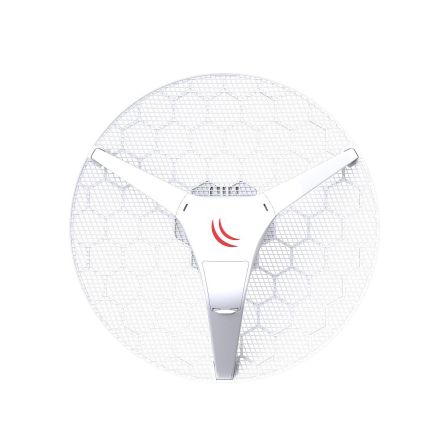

Mikrotik RBLHG-5nD 5GHz LHG 24.5dBi 802.11an 2x2

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

We have two versions available.

- RBLHG-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBLHG-5nD (International) supports 5150MHz-5875MHz range.

Specifications

• Product code    RBLHG-5nD
• CPU nominal frequency    600 MHz
• CPU core count    1
• Size of RAM    64 MB
• 10/100 Ethernet ports    1
• Wireless chip model    AR9344
• Wireless standards    802.11a/n
• PoE in    Yes
• Supported input voltage    11 V - 30 V
• Dimensions    Ø 391 x 222 mm; package 450 x 450 x 145 mm
• Operating System    RouterOS
• Tested ambient temperature    -40 to 70° C
• License level    3
• Antenna gain DBI    24.5
• CPU    AR9344
• Max Power consumption    6W
• Number of chains    2
• Storage type    FLASH
• Storage size    16 MB


Wireless specifications

Ethernet test results
