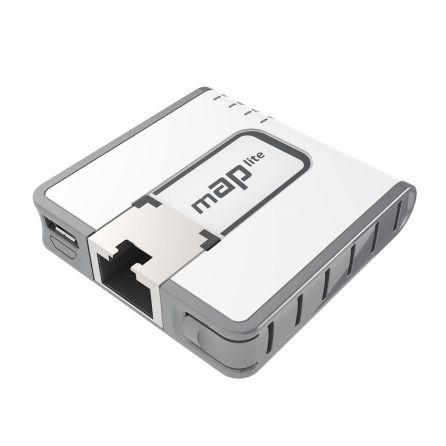

MikroTik RBmAPL-2nD mAP lite AP 2.4GHz

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Specifications:

• Architecture: MIPSBE

• CPU: QCA9533

• CPU core count: 1

• CPU nominal frequency: 650 MHz

• Dimensions: 48x49x11mm

• RouterOS license: 4

• Operating System: RouterOS

• Size of RAM: 64 MB

• Storage size: 16 MB

• Storage type: FLASH

• MTBF: Approximately 100'000 hours at 25C

• Tested ambient temperature: -30°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate: 300 Mbit/s

• Wireless 2.4 GHz number of chains: 2

• Wireless 2.4 GHz standards: 802.11b/g/n

• Antenna gain dBi for 2.4 GHz: 1.5

• Wireless 2.4 GHz chip model: QCA9533

• Wireless 2.4 GHz generation: Wi-Fi 4

Ethernet

• 10/100 Ethernet ports: 1

Powering

• MicroUSB input Voltage: 5 V

• Number of DC inputs: 2 (PoE-IN, MicroUSB)

• Max power consumption: 3.5 W

• Cooling type: Passive

• PoE in: 802.3af/at

• PoE in input Voltage: 10-60 V

Certification & Approvals

• Certification: CE, FCC, IC, EAC, ROHS

• IP: IP20
