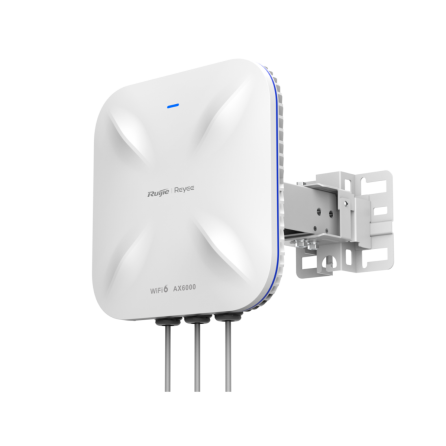

Reyee RG-RAP6260(H)-D(US) AP AX6000 High-density Outdoor Directional

Build Ultra-fast and High-density Outdoor Wi-Fi 6

Best-in-class Wi-Fi Performance

With a revolutionary combination of OFDMA and 1024QAM, the latest 802.11ax standard, the 160MHz band, and dual band 4x4 MU-MIMO, RG-RAP6260(H) wireless aggregation rate reaches 5.95Gbps.

Easily Add Extra Outdoor Wi-Fi with Reyee Mesh

Less wiring, more relaxing

Support Extra-Distance Access Point Deployment

With gigabit SFP port, the device supports up to 20km transmission from datacenter with single mode fiber

Boost Your Internet Speed with 2.5Gbps Uplink

Rock-solid in Harsh Environments

Adopts completely sealed, waterproof, dustproof, moisture proof and flame-retardant, wind erosion protection,wide temperature range, and 4kV surge protection design.

Directional Coverage with Long Range

Built-in high gain antennas, supports full coverage.

Cloud, Make Your Business Easy

• Remote monitoring

• Remote Wi-Fi management

• Cloud portal authentication

• Wireless intelligent optimization

Specifications:

• Equal and Weighted Cost Multi-Path (ECMP): 3.5 kg (excluding mounting kits)

• MIMO:4x4 @2.4 GHz, 4x4 @5 GHz

• Network Port: 1 x 100/1000/2500 Base-T / 1 x 1GBase-X SFP

• IP Rating: IP68

• Power Supply Slot: 802.3bt PoE, 48 V/1 A DC

• Wireless Protocol: 802.11ax (Wi-Fi 6), 5.95 Gbit/s

• Certifications: CE, RoHS

• Power Consumption: ≤ 40 W

• Max./Recommended Clients: 512/130

• Dimensions (W x D x H): 300 mm x 300 mm x 75.5 mm (without mounting bracket)

• Operating Temperature: -40°C to +65°C

• Warranty Card: 3 years
