Cambium XV2-21X0A00-US AP WiFi 6 5 GHz 2x2, 2.4 GHz 2x2 1 GbE RJ45

Value-Tier Wi-Fi for Any Market

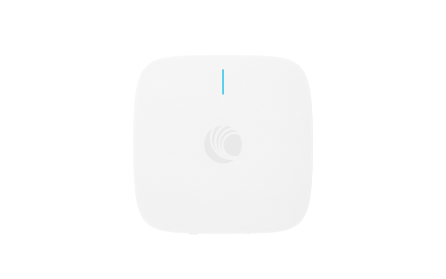

Cambium Networks XV2-21X Wi-Fi 6 Indoor Access Point (AP) delivers a high performance-to-price ratio attractive to any market.

The XV2-21X can be adopted and managed by any of the Cambium management systems, including cnMaestro Essentials and cnMaestro X, available in cloud and on-premises versions. Choose the  management type you need and change it at any time. Unlike other value-tier access points, the XV2-21X is never locked into just one management selection.

Designed for Fast Installation

The XV2-21X offers multiple installation methods included in the same shipping box. Mount the AP to a ceiling tile using the included steel plate; mount to an existing junction box with 83mm center-to-center holes; twist lock the AP onto a 36mm, 24mm, and 14mm T-bar; or simply mount it to any flat surface using the included wall anchors. No accessory brackets are needed

Specifications:

• FCC Ch 1–11, 36–48, 100–144, 149–165

• ISED Ch 1–11, 36–48, 100–116, 149–165

• ETSI Ch 1–13, 36–64, 100–140

ROW Individual country limits may apply. Please contact your regional sales manager for country-specific regulations. For Southeast Asia (SEA) countries, refer to the SEA Regulatory

Note: FCC, IC, EU DFS channels not supported in first release

• Radios: 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2:2 / 2.4 GHz 802.11 b/g/n/ax, 2x2:2

• Wi-Fi: 802.11 a/b/g/n/ac Wave 2/ax

• SSID Security: WPA3-AES, WPA3-Enterprise, WPA2 (CCMP, AES,802.11i), WPA2 Enterprise (802.1x/EAP), WEP, Open

• Max PHY Rate: 5 GHz radio 2402 Mbps / 2.4 GHz radio 573.5 Mbps

• Ports: 1 x IEEE 10/100/1000 Mbps

• Antenna 5 GHz 6 dBi

• 2.4 GHz 5 dB

• Power: Typical 11W, 802.3af powered device

• Dimensions: 155 mm x 155 mm x 37 mm (6.1 in x 6.1 in x 1.46 in)

• With Bracket: 155 x 155 x 46 mm (6.1 x 6.1 x 1.81 in)

• Weight: 475g (1.05 lb)
