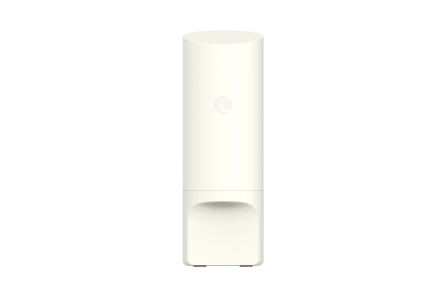

Cambium XV2-2T0XA00-US XV2-2T Access Point Wi-Fi 6 802.11ax dual-radio, 2x2 Outdoor Wi-Fi 6 Access Point

Outdoor Wi-Fi 6 Designed for Greater Range and Speed

The XV2-2T1 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets.

Surge suppression up to 4kV and an LTE co-existence filter are featured.

The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.

The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and

prepares a network for higher growth and greater density of Wi-Fi connected devices

Specifications

• FCC Ch 1–11, 36–48, 52–64, 100–144, 149–165

• ISED Ch 1–11, 36–48, 52–64, 100–144, 149–165

• ETSI Ch 1–13, 36–48, 52–64, 100–144

• ROW (Individual country limits may apply): Ch 1–14, 36–48, 52–64, 100–144, 149–177 2400–2483.5 MHz, 5150–5895 MHz

• Radios: 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 / 2.4 GHz 802.11 b/g/n/ax, 2x2 BLE 4.1

• Wi-Fi: 802.11 a/b/g/n/ac Wave 2/ax

• SSID: WPA3, WPA2 (CCMP, AES, 802.11i), WPA2

• Security: Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open

• Max PHY Rate:  5 GHz radio 1,201 Mbps / 2.4 GHz radio 573.5Mbps

• Ports: 1 x IEEE 100/1000/2500 Mbps / 1 x IEEE 10/100/1000 Mbps Ethernet with SW / configurable passive PoE output of 30V or 48V up to 30 Watts

• Antenna: 5 GHz 13.5 dBi, Sector / 2.4 GHz 11 dBi, Sector

• Max EIRP: 5 GHz 36 dBm / 2.4 GHz 35 dBm / EIRP may be limited by country regulations

• LTE Filter: Band 38, 40

• Power: 20W max Up to 50W when powering an auxiliary device

• Dimensions: 582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in)

• Weight: 1,200 g (2.64 lbs)

• Security: Kensington lock slot

• LEDs: Multi-color status LEDs

• Ambient Operation Temperature: -40ºC to 65ºC (-40ºF to 149ºF)

• Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)

• Humidity: 95% RH non-condensing

• MTBF: 25ºC = 674,966 hours 65ºC = 197,106 hours

• Mount Options Pole or wall mounting.

• Pole diameter: MIN 30 mm / MAX 75 mm

• Certifications(Compliance): Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1,IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN

• 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, EN 62311 Human Safety/RF Exposure, WEEE & RoHs
