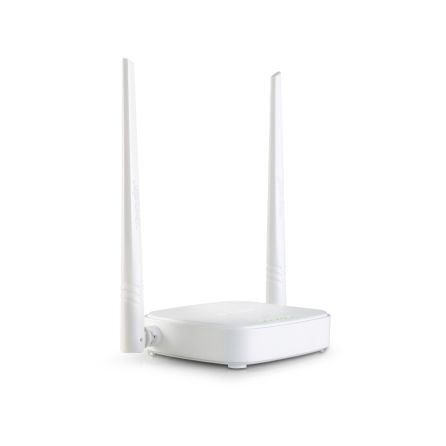

Tenda N301 Router Wireless 300Mbps

The N301 Wireless N300 Easy Setup Router is designed to setup more easily for the home user. It complies with IEEE802.11n, delivers wireless speeds of up to 300 Mbps, making it perfect for everyday web activities like e-mail, chatting, streaming videos, online gaming and more. The N301 can also work as a client router to connect ISP network wirelessly or uplink AP to share the Internet to every corner,elimating the dead point.

Advanced Security

N301 offers multi-level wireless encryption options to prevent unauthorized access and protect your important data.

1. 64/128bit WEP,WPA-PSK,WPA2-PSK

2. Wireless Access Controll based on the mac address of wireless adapter

Secure WiFi at a Push of WPS Button

Compatible with Wi-Fi Protected Setup™ (WPS), N301 features WPS that allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a secure connection. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password.

Parental Control

Support Client Filter、Mac Filter、Websites Filter function, you can define parental controls such as time of using, ability to block domains.

Client Router Mode – WISP Client

N301 can work as client mode to connect to ISP network or uplink AP wirelessly to share the Internet to every corner,elimating the dead point.

How it Works

To make wireless magic, start with Internet service and a modem then connect a Tenda router. The router broadcasts a wireless signal that lets you easily connect your devices and smart appliances.appliances.

Hardware

• Standards: IEEE802.3, IEEE802.3u,IEEE802.3ab

• Interface: 1*10/100Mbps WAN port

• 3*10/100Mbps LAN ports

• Antenna: 2*5dBi external antennas

• Button: 1*RST

• Power: Input：AC 100-240V~50/60Hz 0.6A

• Output：DC 9V0.6A

• Dimensions(W*D*H): 127.4*90.5*26mm

• LED Indicator: SYS、WLAN 1、 2、 3、 WAN

Wireless

• Wireless Standards: IEEE 802.11b/g/n 2.4GHz

• Data Rate: 2.4GHz: Up to 300Mbps

• Frequency: 2.4GHz

• Transmit Power: CE:<20dBm

• Basic Features: WiFi On/Off

• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Software

• Internet Connection Type: PPPoE, Dynamic IP, Static IP / PPPoE(Russia), PPTP(Russia), L2TP(Russia)

• Operating Mode:   Wireless Router Mode

Universal Repeater Mode

WISP Mode

AP Mode

• DHCP Server: DHCP Server

   DHCP Client List

   DHCP Reservation

• Virtual Server: Port Forwarding

    DMZ Host

    UPnP

• Security: Client Filter

      Parental Control(support black list and white list)

      Remote Web Management

• Firewall: Forbid UDP flood attack

     Forbid TCP flood attack

     Forbid ICMP attack

     Forbid WAN PING from internet

• DDNS: no-ip,DynDNS,Oray

• VPN:   IPsec pass through

PPTP pass through

L2TP pass through

• Special Features: Smart WiFi Schedule

• Others: Bandwidth Control

   MAC Clone

   System Log

   Backup & Restore configurations

   Firmware upgradeable via browser

Others

• Temperature: Operating Temperature: 0℃ ~ 40℃ / Storage Temperature: -40℃ ~ 70℃.

• Humidity: Operating Humidity:10% ~ 90% RH non-condensing / Storage Humidity: 5% ~ 90%RH non-condensing.

• Factory Default Settings: Default Access: 192.168.0.1

• Certificates: CE/FCC/RoHS

• EIRP Power (Max): 2.400-2.4835GHz:19.23dBm (EIRP)

• Package Contents: Wireles Router*1

Power Adapter *1

Install Guide*1

Ethernet Cable*1
