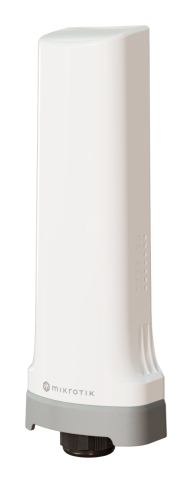

MikroTik CME22-2N-BG77 CME Gateway 802.11b/g/n

Are you tired of wired sensor limitations? Wouldn’t it be nice if legacy devices - like electricity meters - could send their data over the mobile network, like our phones do? With CME Gateway you can achieve just that – and more!

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

With the IP66 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - we’ve added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.

Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!

Specifications

• Architecture    MIPSBE

• CPU    QCA953

• CPU core count    1

• CPU nominal frequency    650 MHz

• Switch chip model    QCA9531

• RouterOS license    4

• Operating System    RouterOS v7

• Size of RAM    64 MB

• Storage size    16 MB

• Storage type    FLASH

• MTBF    Approximately 100'000 hours at 25C

• Tested ambient temperature    -40°C to 70°C

Powering

• Number of DC inputs    2 (2-pin terminal, PoE-IN)

• 2-pin terminal input Voltage    12-57 V

• Max power consumption    31 W

• Max power consumption without attachments    6 W

• PoE in    802.3af/at

• PoE in input Voltage    18-57 V

PoE-out

• PoE-out ports    Ether2

• PoE out    Passive PoE up to 57V

• Max out per port output (input 18-30 V)    600 mA

• Max out per port output (input 30-57 V)    450 mA

• Max total out (A)    0.6 A

Wireless specifications

• Wireless 2.4 GHz Max data rate    150 Mbit/s

• Wireless 2.4 GHz number of chains    1

• Wireless 2.4 GHz standards    802.11b/g/n

• Antenna gain dBi for 2.4 GHz    2

• Wireless 2.4 GHz chip model    QCA9531

• Wireless 2.4 GHz generation    Wi-Fi 4

Ethernet

• 10/100 Ethernet ports    2

Peripherals

• Number of SIM slots    1 Modem (Nano SIM)

Certification & Approvals

• Certification    CE, FCC, IC, EAC, ROHS

• IP    66
