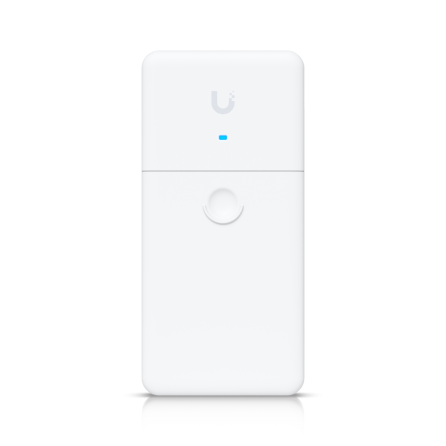

Ubiquiti UACC-LRE Extend PoE (1) GbE PoE/PoE+ input (1) GbE passthrough PoE RJ45 Port

Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.

Extend PoE connections up to 1 km*

(1) GbE RJ45 port for PoE/PoE+ input**

(1) GbE RJ45 port for passthrough PoE output

10kA+ surge protection

Works reliably in extreme temperatures (-40 to 80° C)

Specifications:

• Dimensions: 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5")

• Weight: 350 g (12.3 oz)

• Enclosure material: UV stabilized polycarbonate

• Mounting material: Stainless steel

• Weatherproofing: IPX5

Hardware

• Networking interface: (2) GbE RJ45 ports

• PoE interface: (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)

• Power method: PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)*

*May not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.

• Max. power consumption (excluding PoE out): 1.5W

• Voltage range: 37—57V DC

• ESD/EMP protection: Air/contact: ± 30kV

• DC sparkover voltage: 90V at 100V/s

• Max. impulse sparkover voltage: 700V at 1kV/μs

• Discharge current: 10kA+

• Max. MTU: 1,500 bytes

• Modes: Long-range indoor / Outdoor ethernet repeater

• Ambient operating temperature: -40 to 80° C (-40 to 176° F)

• Ambient operating humidity: 10 to 95% non-condensing

• Certifications: CE, FCC, IC

LEDs

• System Blue: power ON

• Ethernet Green: 1 Gbps

• Amber: 10/100 Mbps

• PoE Amber: passthrough PoE out
