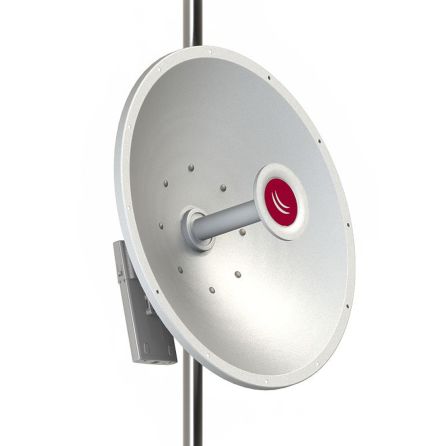

MikroTik MTAD-5G-30D3-PA mANT30 5 GHz 30dBi Dish Precision Align Mount

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included.

Specifications

• Beamwidth +/-2.5 deg

• Connector 2x RP-SMA Female (outside thread)

• Cross Polarization >40 dB

• Diameter x Depth 70 x 45cm (27.5 x 17.8in)

• Elevation adjustment range +/- 15 deg

• Frequency Range 4.7-5.875 GHz

• Front-to-Back Ratio >30 dB

• Impedance 50 ohms

• Operating Temperature -50°C to 80°C(-49°F to 158°F)

• Outdoor Rating ETSI EN 300 019-2-4

• Packaged size 73x73x20cm (29x29x8in)

• Packaged weight 8.4 kg (18,5)

• Polarization Vertical and Horizontal

• Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)

• Port to Port Isolation >40dB min

• Power Rating 100W

• Reflector Aluminum

• Standards EN 302 326 DN1, DN2, DN3, DN5

• VSWR ≤ 1.4 typ, ≤ 1.8 max

• Weight 5.7kg (12.6 lbs)

• Wind Load (125 mph) 181.4kg (400 lbs)

• Wind Survivability 201kph (125mph)
