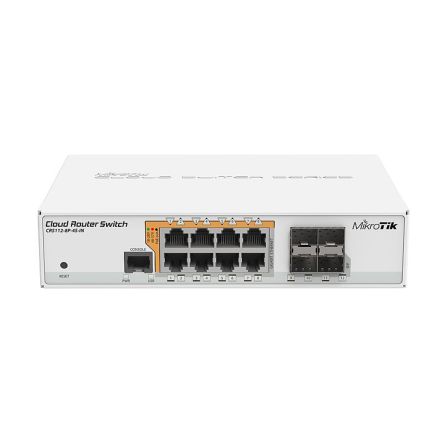

MikroTik CRS112-8P-4S-IN Switch (8) GbE RJ45 (4) SFP Ports L5

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

Specifications

• Architecture    MIPSBE

• CPU    QCA8511

• CPU core count    1

• CPU nominal frequency    400 MHz

• Switch chip model    QCA8511

• Dimensions    200 x 142 x 44 mm

• RouterOS license    5

• Operating System    RouterOS

• Size of RAM    128 MB

• Storage size    16 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -20°C to 60°C

Powering

• Number of DC inputs    2 (DC jack)

• DC jack input Voltage    18-28 V / 48-57 V

• Max power consumption    160 W

• Max power consumption without attachments    10 W

• Cooling type    Passive

• PoE-out

• PoE-out ports    Ether1-Ether8

• PoE out    802.3af/at

• Max out per port output (input 18-30 V)    1 A

• Max out per port output (input 30-57 V)    450 mA

• Max total out (A)    2.8A (18V-28V) & 1.4A (48V-57V) A

Ethernet

• 10/100/1000 Ethernet ports    8

• Number of 1G Ethernet ports with PoE-out    8

Fiber

• SFP ports    4

Peripherals

• Serial console port    RJ45

Other

• PCB temperature monitor    Yes

Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    IP20
