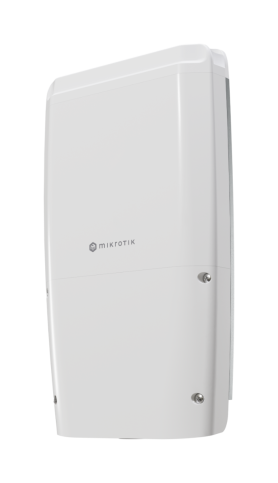

MikroTik CRS504-4XQ-OUT Switch (1) 100 Mbps (4) 100G QSFP28 Ports

Should high-quality 100 Gigabit connectivity be limited to indoors only? Definitely not! That’s why we created the CRS504-4XQ-OUT: a versatile, cost-effective, ultra-fast weatherproof switch for all your outdoor needs.

At the core of this masterpiece, we have an incredible Marvell Prestera switch chip. And there are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices. Here’s where the speedy switch chip really shines: each port is connected to four 25 Gigabit lines. That means you’re getting up to 16 high-speed fiber interfaces from a single outdoor switch! You can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. And all this versatility comes in a sturdy, weatherproof IP66-rated enclosure. This rating proves it’s strong enough to handle powerful water jets from any direction!

When it comes to outdoor event planning, you can never be too prepared. So having multiple powering options is a must! And CRS504-4XQ-OUT has got you covered: there’s a standard DC jack, a 2-pin terminal, and 802.3bt PoE-in. We’ve also kept the good old management and console ports – to help you deal with any unexpected situations.

Performance-wise, CRS504-4XQ-OUT is a real workhorse that can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 25W (without attachments).

Stop waiting for the perfect weather – invest in the perfect tools!

Specifications

• Architecture    MIPSBE

• CPU    QCA9531

• CPU core count    1

• CPU nominal frequency    650 MHz

• Switch chip model    98DX4310

• RouterOS license    5

• Operating System    RouterOS v7

• Size of RAM    128 MB

• Storage size    32 MB

• Storage type    FLASH

• MTBF    Approximately 200'000 hours at 25C

• Tested ambient temperature    -40°C to 70°C

Powering

• Number of DC inputs    3 (PoE-IN, 2-pin terminal, DC jack)

• DC jack input Voltage    36-57 V

• 2-pin terminal input Voltage    36-57 V

• Max power consumption    44 W

• Max power consumption without attachments    25 W

• Cooling type    Passive

• PoE in    802.3 bt

• PoE in input Voltage    43-57 V

Ethernet

• 10/100 Ethernet ports    1

Fiber

• Number of 100G QSFP28 ports    4

Peripherals

• Serial console port    RJ45

Other

• PCB temperature monitor    Yes

• Voltage Monitor    Yes

• Certification & Approvals

• Certification    CE, EAC, ROHS

• IP    66
