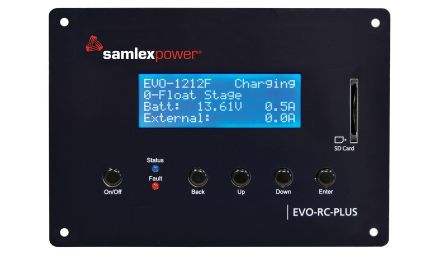

Samlex EVO-RC-PLUS Remote Control for EVO Series Inverter/Chargers

The EVO-RC-PLUS is an intelligent remote control designed specifically for use with the following Samlex EvolutionTM Series of Inverter/Chargers:

(i) F Series: EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW

(ii)120V Models: EVO-2212, EVO-3012, EVO-2224, EVO-4024

(iii)230V Models: EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E

(iv)120/240V Split Phase Model: EVO-4248SP

View real-time activity on the alpha numeric LCD display with 4 rows of 20 character while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.

Use the remote to program inverter and battery charging parameters. Save a parameter set on a removable 32GB SD Card (the SD card slot located on the remote face of the EVO-RC-PLUS). Then transfer the saved parameters to other EVO™ inverter/chargers.

Data log historic power consumption, inverter functionality, battery charging activity, faults and all of the conditions leading up to them. Analyze trends for more efficient use of off-grid resources.

Features

• Advanced features for programming various parameters and modes of operation

• 4 rows of 20 characters alpha numeric LCD display for messaging

• Robust metal enclosure

• SD card slot can manage a removable SD Card up to 32GB (SD Card not included)

• Includes 10M/33ft data cable

Specifications

• Weight: 0.6 lbs

• Weight: 0.3 kg

• Dimensions: 6.3 x 4.5 x 1.4 in

• Dimensions: 160 x 114.2 x 35.5 mm
