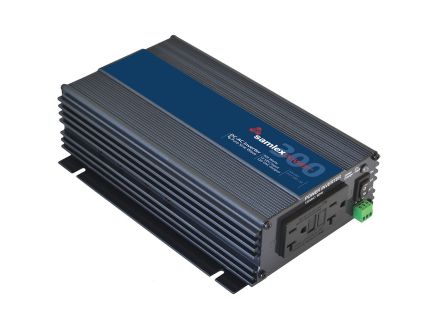

Samlex PST-300-24 Inverter 24 VDC - 120 VAC 300 Watt Modified Sine Wave

This high efficiency DC-AC inverter converts 24 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel.

Features

• High efficiency

• Temperature controlled cooling fan – reduces energy consumption

• Low interference Wide operating DC input range: 21.0 – 33.0 VDC

• LED indicators for power and protections

• Low idle power draw

• Dual GFCI protected AC outlets

• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up

• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

• Detachable cable with 12V plug adapter

• Detachable cable with battery clamps

• Safety certified to UL standards, FCC compliant

• Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch

Specifications:

• Input: 24 VC

• Output: 120 VAC

• Watts: 300 Watts

• Surge: 500 Watts

• Weight: 3.46 (lbs)

• Weight: 1.57 (kg)

• Dimensions: 6.1 x 9.69 x 2.58 (in)

• Dimensions: 155 x 246 x 65.5 (mm)

• Safety: ETL to UL Standard

Applications

• Service vehicles

• Mobile Offices

• Boats

• Recreation Vehicles, Camping

• Telecommunication

• Field work / Construction sites

• Solar power systems

• Emergency backup power

• Home electronics: TV, VCR, video games

• Computers, printers
