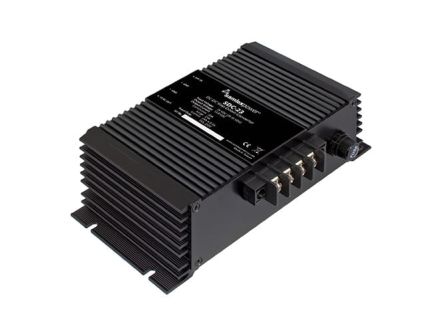

Samlex SDC-23 Converter 24 VDC-12 VDC

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features

• Advanced switch-mode design

• Converts 24 VDC to 12 VDC

• Compact and light weight

• High efficiency

• Current limiting circuit

• Over voltage protection

• Short circuit protection

• Reverse polarity protection

• Mount in almost any location

Specifications

• Input: 20-35 VDC

• Output: 13.8 VDC

• Amps: 20 Amps

• Weight: 2.2 (lbs)

• Weight: 1 (kg)

• Dimensions: 7.8 x 4.8 x 2.4 (in)

• Dimensions: 19.8 x 12.2 x 6.0 (cm)
