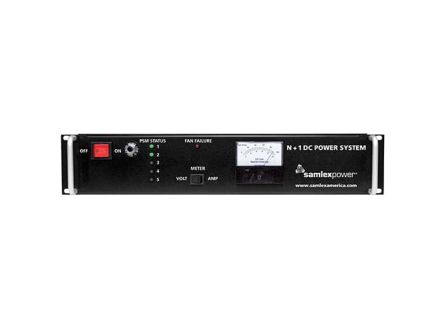

Samlex SEC-40BRM Power Supply 13.8 VDC 40 Amp. AC input 125 V 50 Hz. Switching

SEC-40BRM + SEC-2012 MPSB modules are expandable to: 60 amp, 80 amp, or 100 amp power supply

This modular 19” rack mount AC/DC power supply can provide up-to 40 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50 Hz AC input). Output power can be expanded in steps of 20 amps (60A, 80A or 100A max.) by adding SEC-2012MPSB power modules.

An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.

Specifications

• Input: 105-125 VAC 50 HZ

• Output: 13.8 VDC

• Amps: 40 Amps

• Weight: 20.4 (lbs)

• Weight: 9.25 (kg)

• Dimensions: 19 x 16.25 x 3.5

• Dimensions: 482.6 x 403.86 x 91.44 (mm)
