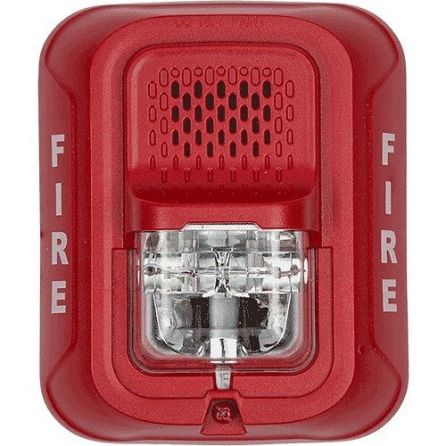

System Sensor P2R-L L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red

Product Overview

L-Series horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment. Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 7 field-selectable candela settings for wall and ceiling mount devices, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. L-Series horn strobes are listed to UL 1971 and UL 464 for public mode evacuation.

Main Features

• Updated Modern Aesthetics

• Small profile devices for Horns and Horn Strobes

• Plug-in design with minimal intrusion into the back box

• Tamper-resistant construction

• Automatic selection of 12- or 24-volt operation at 15 and 30 candela

• Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185

• Horn rated at 88+ dBA at 16 volts

• Rotary switch for horn tone and two volume selections

• Mounting plate for all standard and all compact wall units

• Mounting plate shorting spring checks wiring continuity before device installation

Physical Characteristics

Application/Usage: Fire Alarm, Indoor

Color: red

Depth: 2.5"

Depth: 63.5mm

Durability: Tamper Resistant

Form Factor: Wall Mount

Lens Color: Clear

Product Color: Red

Width: 4.7"

Width: 119.38mm

Power Description

Input Voltage: 33V DC

Input Voltage: 33 (V DC)

Power Source: DC
