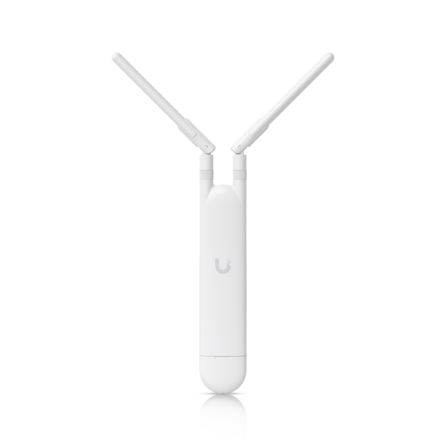

Ubiquiti UAP-AC-M-US AP Mesh 802.11AC Indoor/Outdoor

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.

Specifications:

• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")

• Weight: 152 g (5.4 oz)

• Networking interface: (1) GbE RJ45 port

• Management interface: Ethernet / Bluetooth

• Power method: PoE / Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)

• Power supply: Gigabit PoE adapter 24V, 0.5A* (*5-packs do not come with PoE adapters.)

• Supported voltage range 44—57V DC

• Max. power consumption 8.5W

• Max. TX power

2.4 GHz: 20 dBm

5 GHz: 20 dBm

6 GHz

• MIMO

2.4 GHz: 2 x 2

5 GHz: 2 x 2

6 GHz

• Throughput rate

2.4 GHz: 300 Mbps

5 GHz: 867 Mbps

6 GHz

• Antenna gain

2.4 GHz: 3 dBi

5 GHz: 4 dBi

6 GHz

• Button: Factory reset

• Mounting: Wall, pole, fast-mount (Included)

• Operating temperature: -30 to 70° C (-22 to 158° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC, UKCA

• WiFi standards: 802.11a/b/g/n/ac

• Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• VLAN: 802.1Q

• BSSID: Up to 4 per radio

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation Supported

• Power save: Supported

• WMM: Voice, video, best effort, and background

• Concurrent clients: 250+

• Supported Data Rates (Mbps)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
