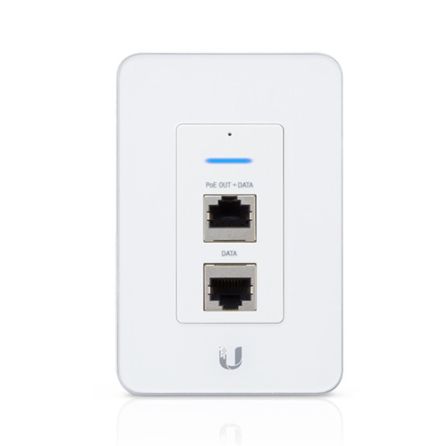

Ubiquiti UAP-IW UniFi AP In-Wall 2.4GHz 802.11n

Scalable and Unifed Enterprise Wi-Fi Management

The UniFi® Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP (UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi Controller software. The software installs on any PC, Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly con gured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Features

Save money and save time Unlike traditional enterprise Wi-Fi systems that utilize a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or
Linux machine; in a private cloud; or using a public cloud service.

Powerful Hardware The UniFi Access Points feature Wi-Fi 802.11n MIMO technology for superior performance in the 2.4 and/or 5 GHz bands, and ranges up to 600 ft. Intuitive UniFi Controller Software Install, con gure, and manage all of your UniFi APs with the intuitive and easy-to-learn UniFi Controller user interface.

Expandable Unlimited scalability. Build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single uni ed management system.

Extend Your Coverage

With the UniFi Controller software running in a NOC or in the cloud, administrators can extend and centrally manage wide areas of indoor and outdoor coverage using any combination of UniFi APs.
Below are some examples of how UniFi APs can be deployed.

Indoor Models

Features

Easy Mounting Sleek wall or ceiling mount design (all accessories included).

Design Aesthetic industrial design with a unique LED provisioning ring or square, which provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE) Includes Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to the device.

The UAP, UAP-LR, and UAP-PRO can be powered using the included PoE injector or powered by a UniFi Switch or TOUGHSwitchTM PoE PRO (both sold separately). The UAP-PRO can be powered by an 802.3af compliant switch.

The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch.

Indoor Model Comparison

UniFi indoor models are available in single-packs and multi-packs.

Except for the UAP-IW, all UniFi APs include:
• Wall and Ceiling Mount Kit
• Power over Ethernet Adapter

Specifications

• Dimensions 114.6 x 70.6 x 28.5 mm (4.51 x 2.78 x 1.12 in)
• Weight 117 g (4.127 oz)
• Networking Interface (3) 10/100 Ethernet Ports
• Buttons Reset
• Operating Band 2.4 GHz
• Antenna Gain 1 dBi
• Wi-Fi Standards 802.11 b/g/n
• Power Method UniFi Switch
• PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)
• Maximum Power Consumption 6W
• Maximum TX Power 17 dBm
• BSSID Up to Four Per Radio
• Power Save Supported
• Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certi cations CE, FCC, IC
• Mounting 1-Gang Electrical Wall Box (Not Included)
• Operating Temperature -10 to 70° C (14 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
