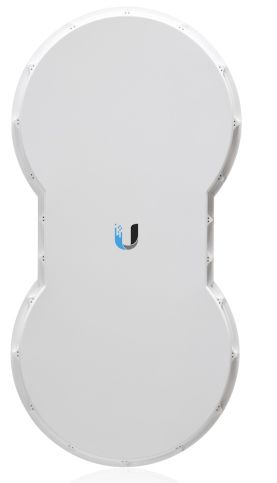

Ubiquiti AF5U-US 5 GHz. Full Duplex Point-to-Point Gigabit Radio

Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Efficient by Design

Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency. airFiber was purpose-built to create a high performance backhaul.

Specifications

* Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08")
* Weight 16 kg (35.27 lb) Mount Included
* Max. Power Consumption 40 W
* Power Supply 50V, 1.2A PoE GigE Adapter (Included)
* Power Method Passive Power over Ethernet
* Supported Voltage Range 42-58VDC
* Certifications CE, FCC, IC
* Mounting Pole Mount Kit (Included)
* Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
* Wind Survivability 200 km/hr (125 mph)
* Operating Temperature -40 to 55° C (-40 to 131°F)
* LEDs (12) Status LEDs:

Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
Remote and Local Displays (Calibrated Signal Strength)

Operating Frequency

FCC 15.247, IC RSS-210  -  5725 - 5850 MHz
ETSI EN 302 502  -  5725 - 5875 MHz
Other Regions  -  5725 - 6200 MHz
